Description

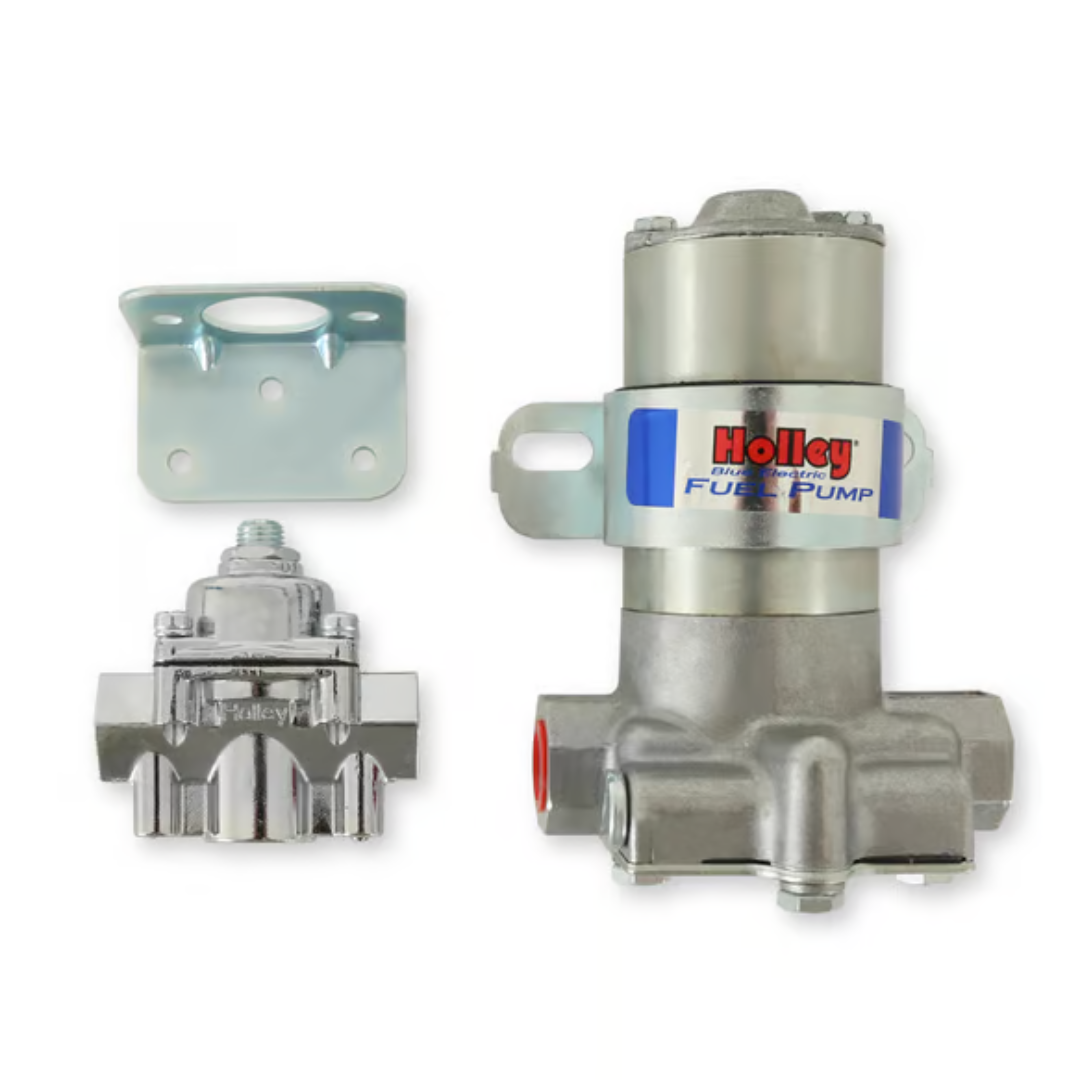

The world-famous Red®, Blue® and Black® fuel pumps are the most recognised performance pumps ever. They have powered racing legends and street enthusiasts alike since the early 70s. Their time-proven rotor/vane design is known to get the job done in an affordable package.
Features:
- Tumble-polished billet look
- Lower housing casting designed for enhanced fuel flow
- The motor draws only 3 amps of current
- Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Not designed for use on aircraft of any type
- Distinctive “Blue” logo
- Flows 110 GPH (free flow)
- Flows 88 GPH at 9 psi
- Maximum pressure is 14 psi
- Includes P/N 12-803 fuel pressure regulator
- Provides constant fuel flow with no pulsation
- Has an externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
